All-in-one Rack ready for Enterprise : A30 Enterprise Rack Solution shares the same innovative infrastructure design of A80 2.0, is ready to be collocated with as easy as common supply mains, and at the rack height of 14U deploys the standard Internet and flexible node configurations on demand catering to business diversity, and at the same time greatly simplifies the cost of construction and deployment, which makes the enterprise to sync with benefits of the open standards of top-class datacenter easily. A30G3 Enterprise Rack Solution series, along with Inventec Computing Node, Storage Node, and Cold Storage Node, can be flexibly applied to cloud computing ecology of the datacenter or the enterprise and bring the revolutionized innovative energy efficiency for the businesses. These features include:
Centralized Cooling : - Remove individual cooling fans in each server node - Shared cooling fan wall fabric - Save total cooling power consumption - Smart rack cooling control - Easy maintenance with hot-swappable fan
Centralized Power Supply : Introducing the latest copperplate node connector design, simplifying the copper busbar design on the rack and equipped with smart control, high performance, and mechanism of backup and recovery.
Centralized Management : - Rack Management Controller (RMC) can make cooling control of the entire rack by fan management policies, on the basis of independent Fan Control Boards (FCBs). - Users can remotely manage node so as to real-time monitor the fan and the power. - Convenient for clients to make remote management of the datacenter.

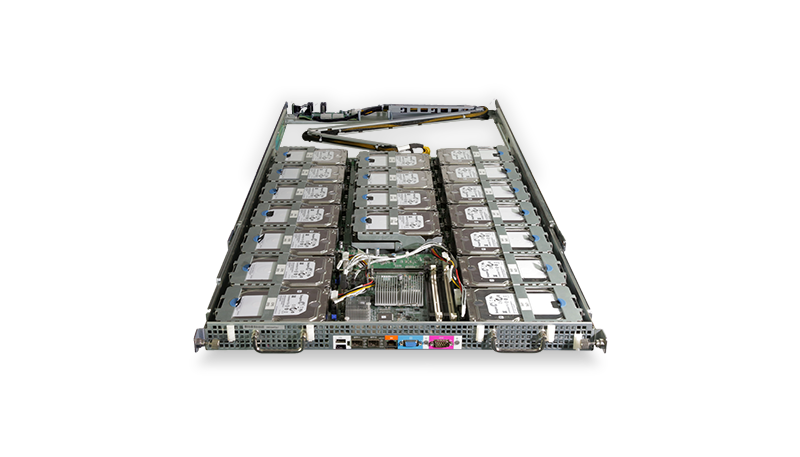

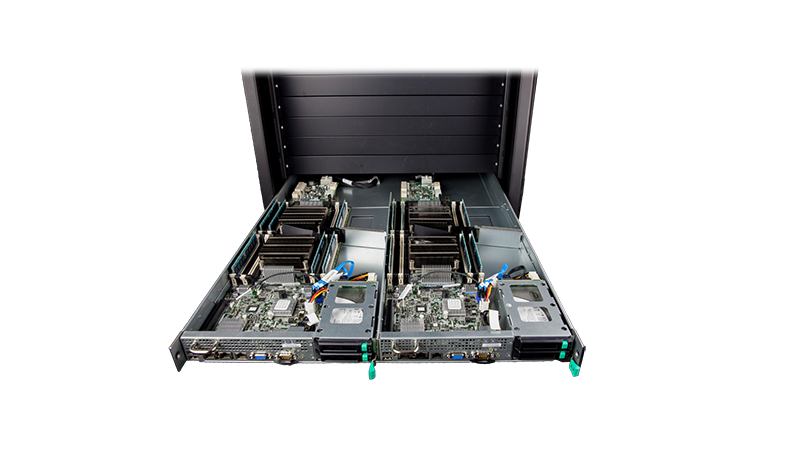

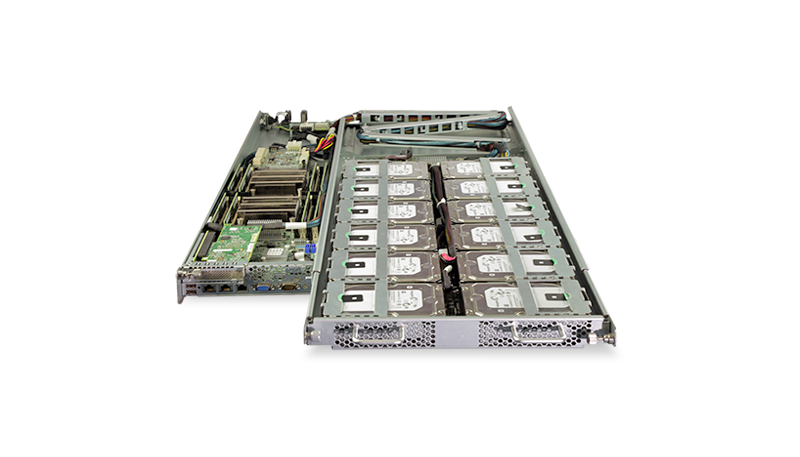

Diversified Nodes : - High performance computing node, adopting dual socket motherboard structure and multi-channels/inter-cache techniques to enhance computing performance. - Hot swappable storage node with large capacity, one single node maximally supporting twelve 3.5” hot-swappable disks with large capacity, and supporting the RAID techniques on the bottom layer hardware, catering to the demand for real-time storage space of online business - Cold storage node with large capacity, one single node supporting eighteen 3.5” hot-swappable disks with large capacity, and supporting data backup for core data.
High Density Design : - Node with high density design, in the space of 1U supporting computing capacity high up to 4 processors, doubly enhancing its high performance computing density in per unit space, and greatly economizing datacenter space. - Rack nodes high densely deployed, A30 in 14U rack space not only accommodating network capability switch devices, centralized power facilities, and remote management modules, but also supporting computing capacity high up to 32 CPUs.
Enterprise Scorpio Rack Solution
14U 21" China Scorpio 2.0 Rack, up to 8U compute nodes
Unit Height: 46.5mm
2U Power Shelf:
Dual Input: 208/230Vac
Supporting 4+4 PSU;
Max. Total power capacity: 4800W

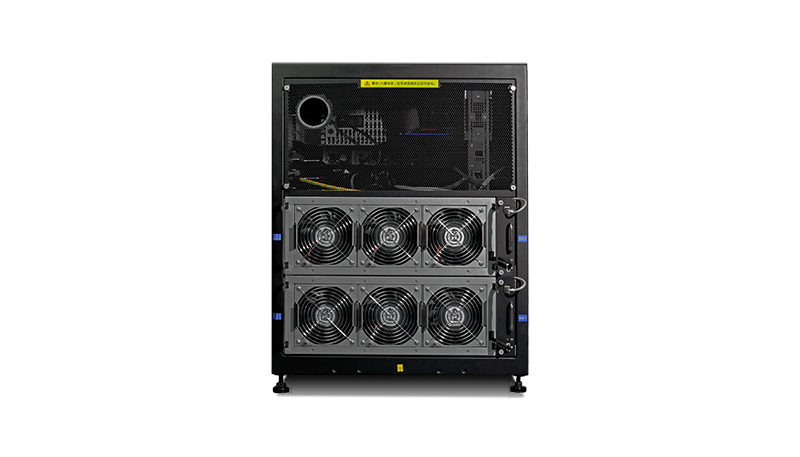

Concentrated cooling fan wall:
4U fan tray; 3x exhaust fan per tray
