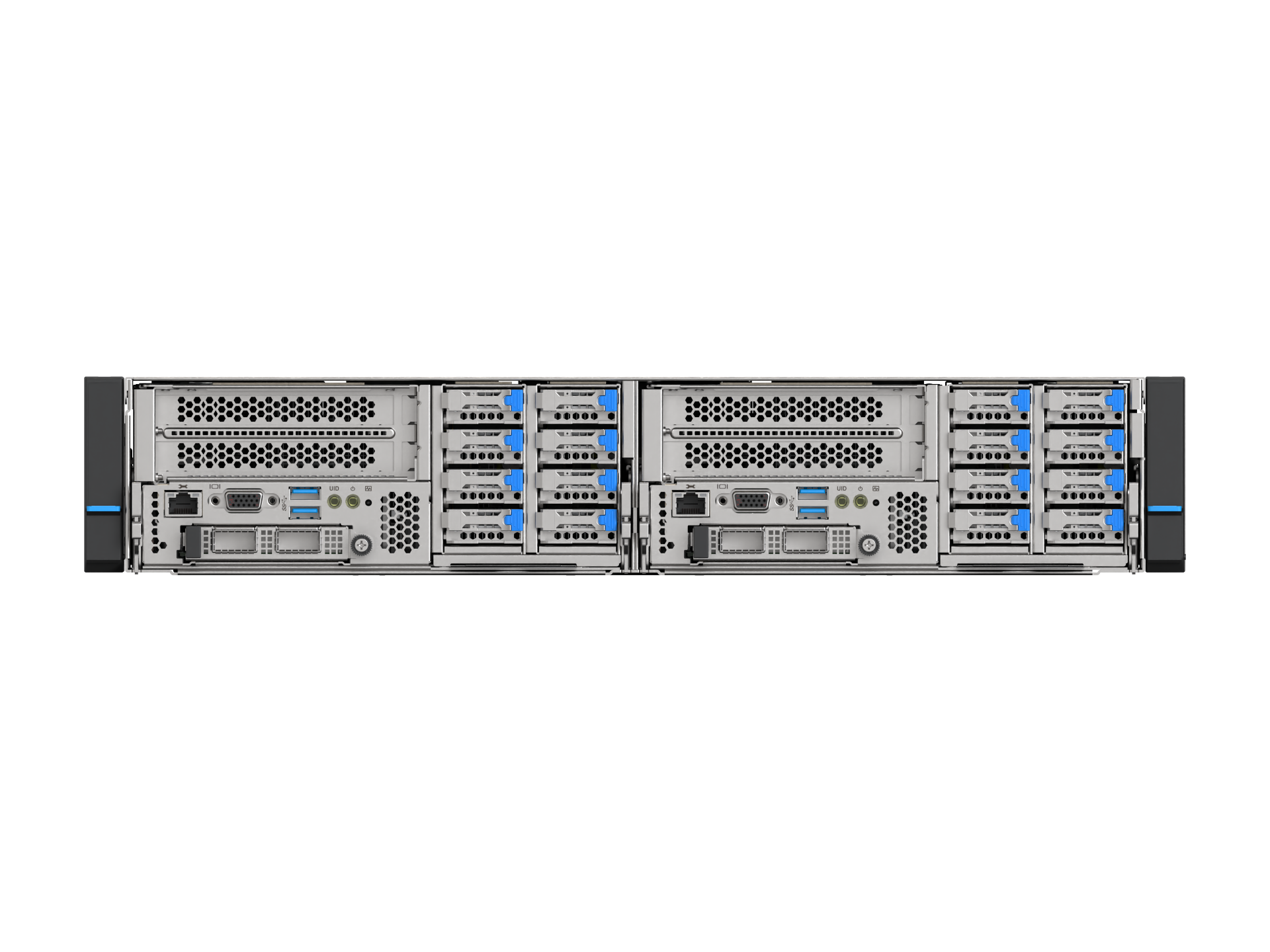

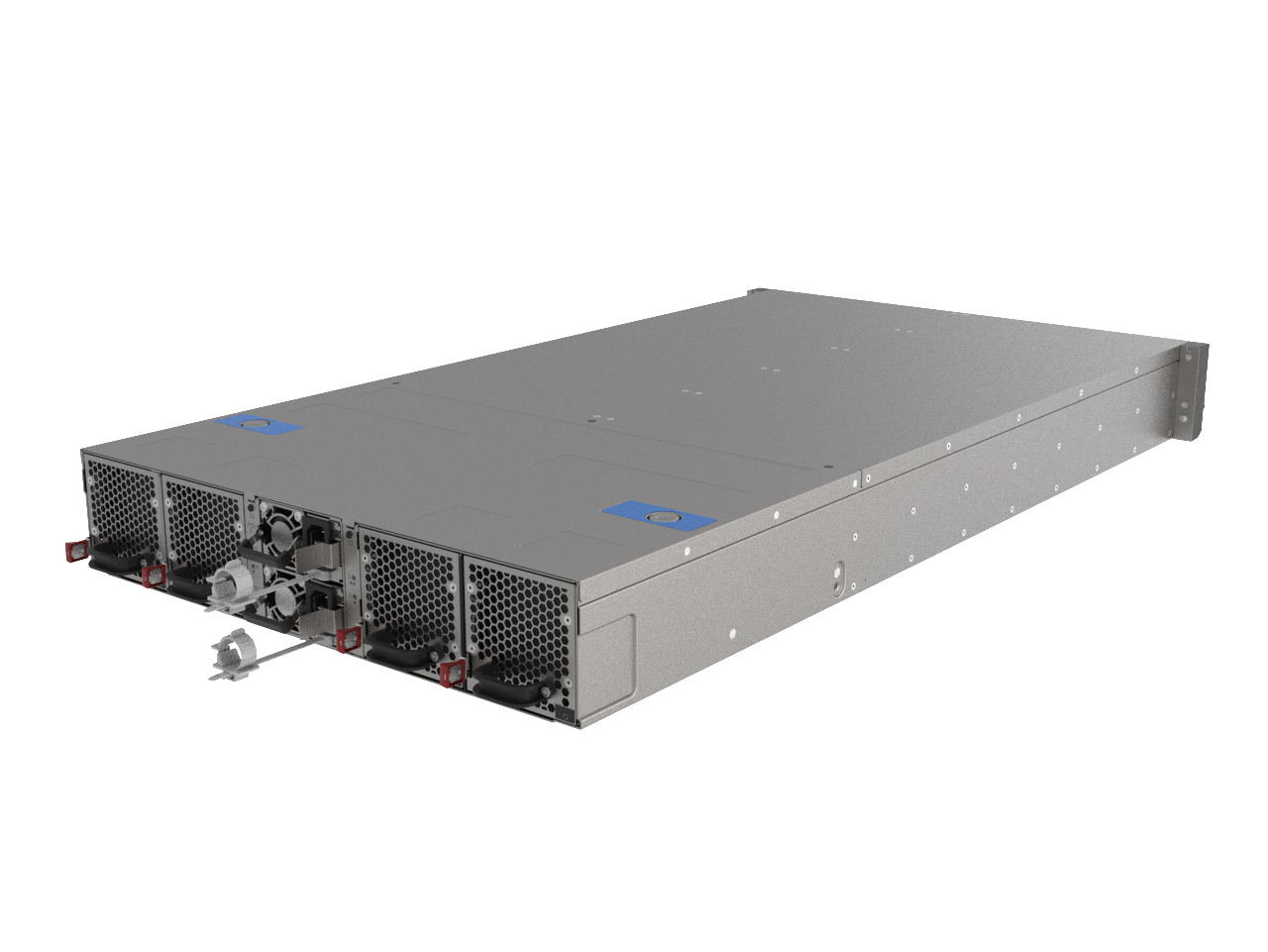

Form Factor
2U2N Rackmount
W x H x D: 447.6x87x 850 mm
(17.63x 3.43x 33.46inch)
Motherboard
Support AMD “Zen5/Zen5c” x86 cores, TDP 500W
Zen5 up to 16 CCDs/128 cores/ 256 threads
Zen5c up to 12 CCDs/192 cores/ 384 threads
1MB L2/Core, up to 32 MB L3 per CCD
Memory
12 channel DDR5 with ECC up to 6400 MT/s
Support for 2-,4-,6-,8-,10-,12-channel memory interleaving
RDIMM, 3DS RDIMM
Storage Controller
For 1 Node:
Front:
Config 1 : 4x 2.5” NVMe/U.2
Config 2 : 8xE1.S
Config 3 : FHFL SW PCIe Card+2xU.2
Internal:
Support 1x22110/2280 M.2 for boot device
Network Controller
Support 1 x PCIe Gen5 x16 x OCP Support NCSI
Expansion Slot
Support 16x MCIOx8 Connector
System Management
Support Aspeed AST2600 BMC NCSI connect to OCP 3.0, 10M/100M/1G Ethernet MAC controller

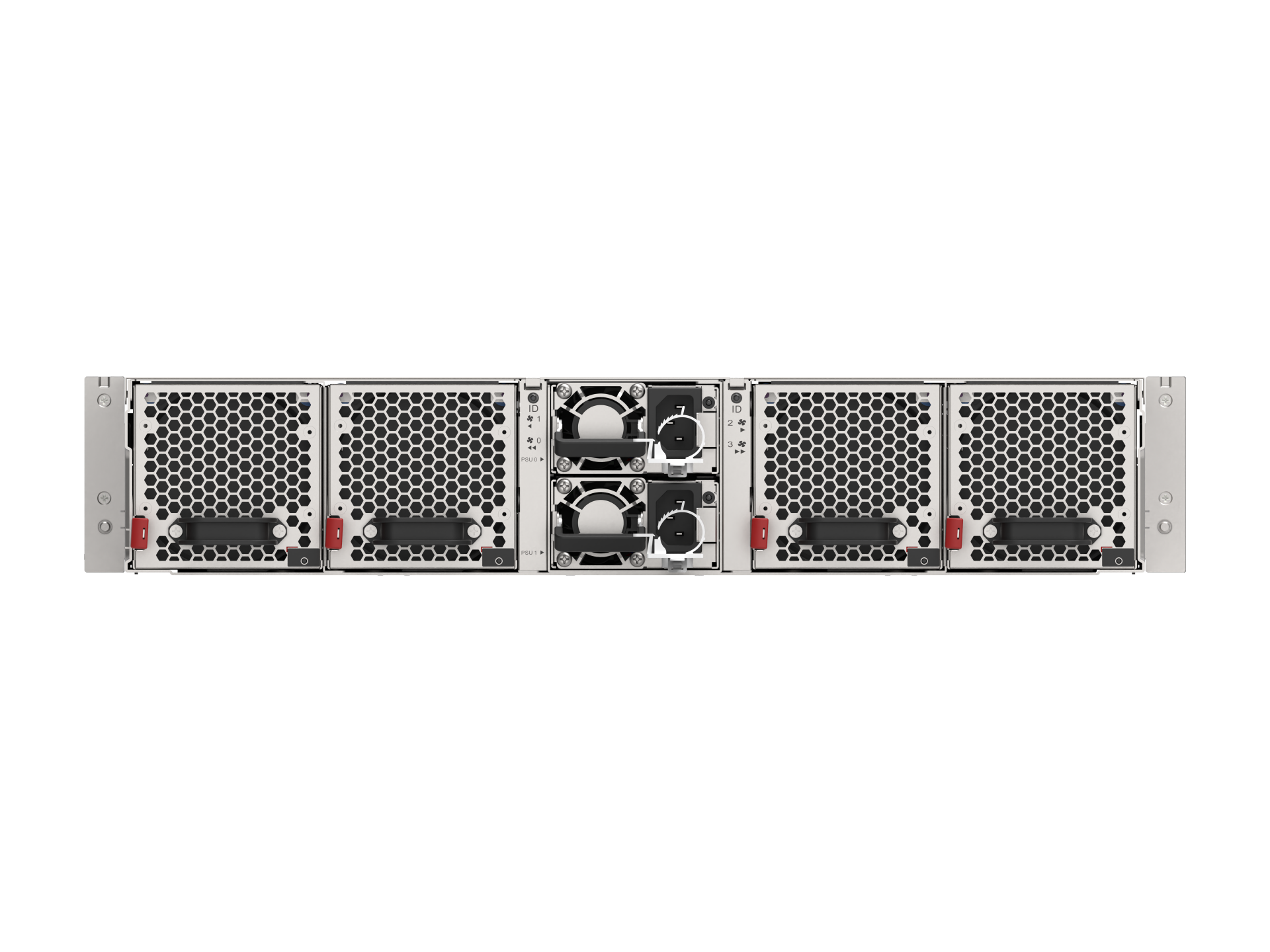

Fan
4 x8056 Fans @35’C ambient temperature with one fan rotor fail condition
Power Bank/Shelf
DC 12V From 1+1 CRPS
