The P47G4 server series feature a 2U, single-socket HPC server system equipped with latest AMD® EPYC™ Processor Family that fits up to 4 accelerators. This allows P47G4 to deliver up to 100 teraflops of FP16 compute performance in lower acquisition costs, without compromising performance and features of a traditional 2 socket system, presenting unmatched compute, memory, IO and security capabilities to accelerate mission critical applications. P47G4 could perfectly meet the emerging scale-out demands of datacenter and HPC markets with increasing utilization, enabling organizations to right-size for key datacenter/HPC workloads in lower TCO. The series present,
Optimized High Performance :A single AMD® EPYC™ processor provides up to 32 cores, 8 memory channels and 128 PCIe 3.0 lanes. With the industry-leading core count, more VMs and more robustly configured VMs per server are enabled than ever. Whether deploying a single server, implementing a private cloud or enabling a hybrid cloud, P47G4 series strike the perfect balance of cores/threads, memory, IO bandwidth and security to deliver excellent performance for many High Performance Computing (HPC) workloads.
High Scalability :P47G4 series enable up to 4 dedicated GPUs in a single-socket server with peer-to-peer communication through the CPU. No more dual sockets or PCIe switches are required to achieve this level of GPGPU density.
The series could further support up to 8 SATA drives, or 6 SATA with 2 U.2 NVMe drives without any extra attachment of HBA cards; meanwhile, two onboard M.2 NVMe disks are supported.
SoC- level Security : With industry’s first embedded x86 silicon-level data security, P47G4 series minimize potential attack surfaces and protects software and data with AMD® Secure Root-of-Trust, AMD® Secure Run, and AMD® Secure Move Technologies.
Single Socket Server Cost Benefits for Enterprise Business and Datacenter Applications :Buy only what you need to support your critical missions. P47G4 series are specialized in VDI and AI (deep learning) arena, applicable for High-Performance-Computing, Cloud, Virtualized IT, Machine Learning, as well as Big Data. Right-size your server and datacenter, without extra CPU or socket, no additional heat sink or redundant connectivity components now with P47G4 server systems!

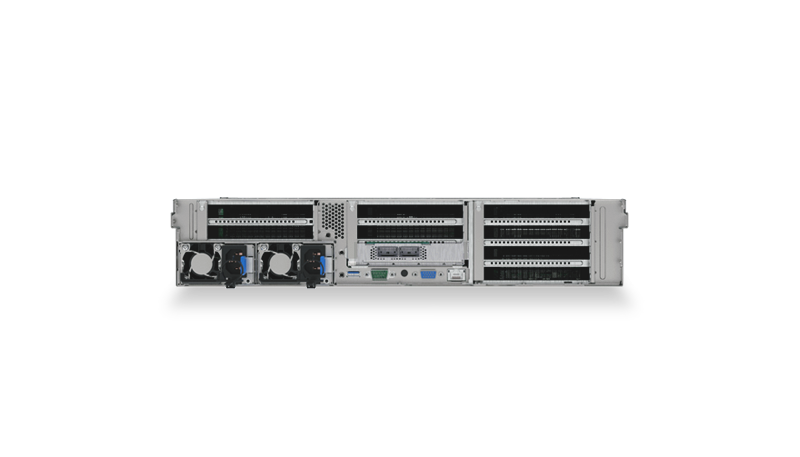

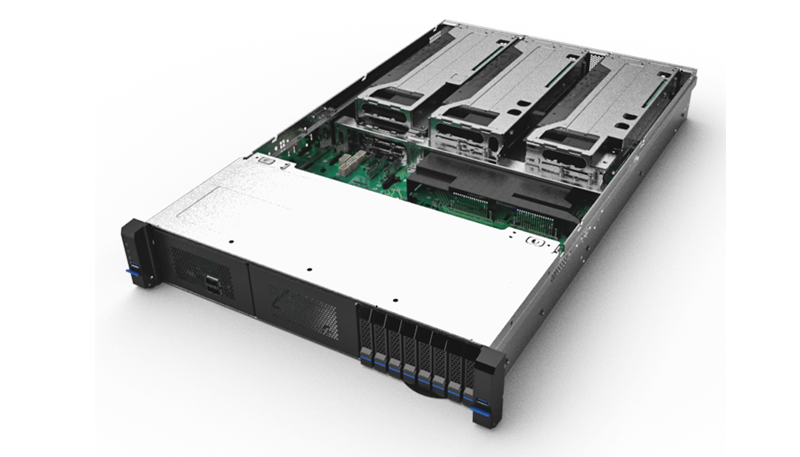

2U1N rack mount with slide rail
W x H x D: 436.9x 86.9x 736.6 mm (17.20x 3.42x 29.00 inch)
Single Socket; AMD® EPYCTM Processor Family
16x DDR4 DIMM slot
SoC, supporting 128 PCIe Gen3 lanes

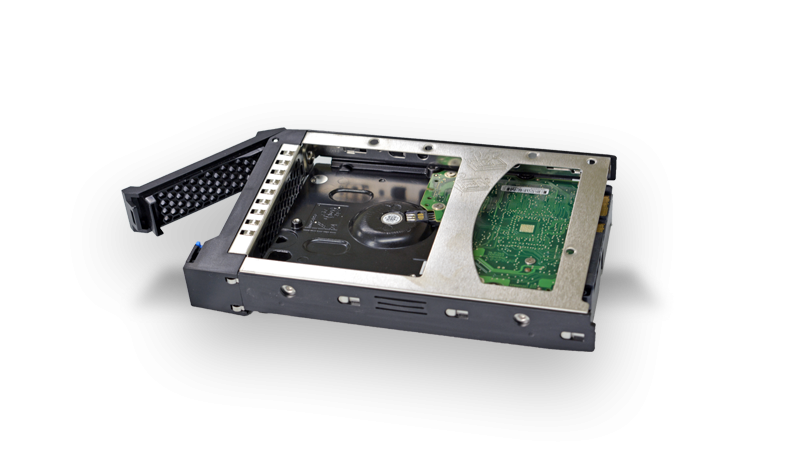

Up to 8x SATA3 (6Gbps) port
2x onboard M.2 NVMe
Supporting up to 2x U.2 NVMe
Supporting 10GbE/25GbE standard PCIe network card
Supporting 10GbE/25GbE/100GbE Mezz card
Inventec network OCP mezz card options:
Option1: NIC-I599-10GD (Dual port 10Gb SFP+)
Option2: NIC-I540-10GDC (Dual port 10Gb RJ-45)
1x PCIe Gen3 OCP 2.0 A+B mezz for NIC/IB
4x PCIe Gen3 x16 for GPGPU (Double-wide, FHFL)
1x PCIe Gen3 x16 for NIC/IB (FHHL)
